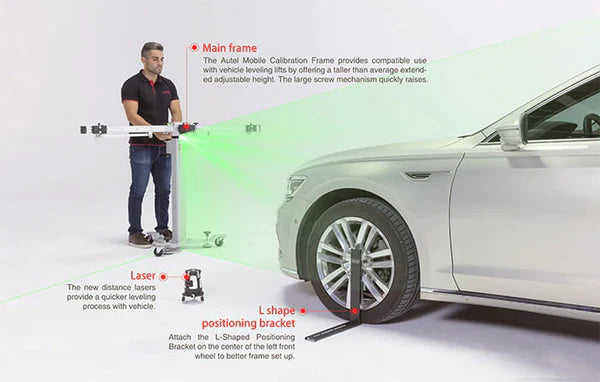

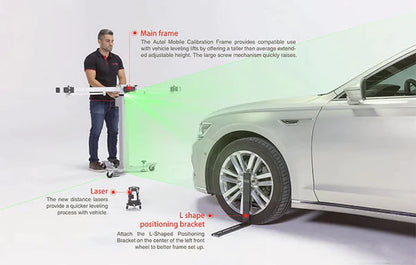

AUTEL MOBILE ADAS MA60020 LDW CALIBRATION SYSTEM

• Portable ADAS Calibration System
• Perform Vehicle LDW Camera Calibrations
• Collapsible Aluminum Calibration Frame with Travel Case

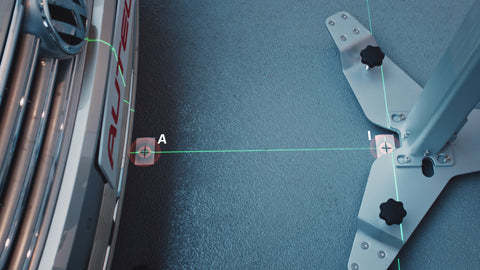

• Includes 2-Line Centering and 5-Line Alignment Lasers
• Includes LDW Targets for Numerous Vehicle Manufacturers
• Compatible Autel ADAS Tablet and MaxiSYS MS906BT Tablet Series and Higher when Upgraded with ADAS Software

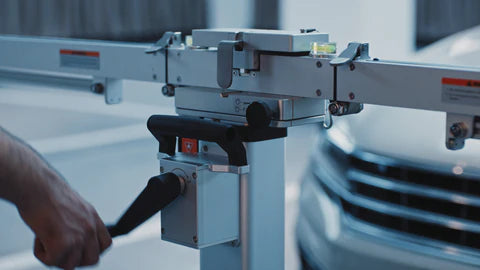

CALIBRATION FRAME & PATTERN BOARD SPECIFICATIONS

Calibration Frame Dimensions (WxDxH)2510mm (98.82„) x 714mm (28.11„) x 1480-2105 mm (58.27-82.87„)

Calibration Frame Weight

• NW: 74.5 kg (164.24 lb.)
• GW: 152kg (335.1 lb.)

Pattern Board Size (LxW)1360mm (53.54„) x 960mm (37.80„)

Crossbar Length2510mm (98.82„)

Measurement Range of Crossbar’s Height

• Height min=350mm (13.78„)
• Height max=950mm (37.40„)

Measurement Range of Pattern Board ‘s Height

• Height min=1000mm (39.37„)
• Height max=1600mm (62.99„)

Rated Power24 V, 3A

Laser Rated Power3V, 25mA

Laser Battery TypeAA 2×1.5V

Calibration Frame Working Temperature

0°C to 50°C

Calibration Frame Storage Temperature

-20°C to 60°C

Laser Class

Class 2

Certification

CE, FCC, RoHS

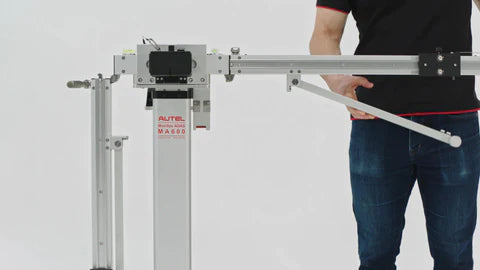

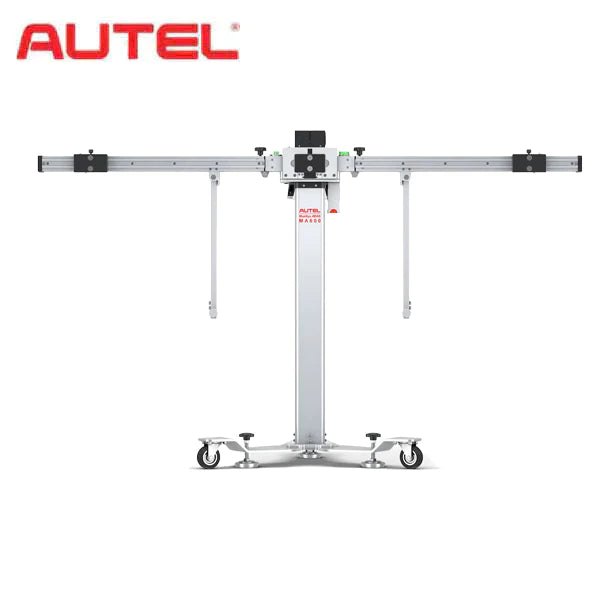

• Autel MA600 Mobile Calibration Frame
• Pattern Board
• Wheel Clamps
• Laser Crossbar
• ADAS Upgrade Software, compatible with MaxiSYS Tablet (not included)
• DIGITALADAS Add-on for Faster Frame Placement with One Person
• LDW Patterns/Targets for:
• Alpha Romeo
• Honda
• Genesis
• VW
• Mercedes
• Hyundai/Kia
• Nissan, Infiniti
• Mazda
• Mitsubishi
• Subaru
• Toyota/Lexus

• LDW Target Case
• Target Board Holder

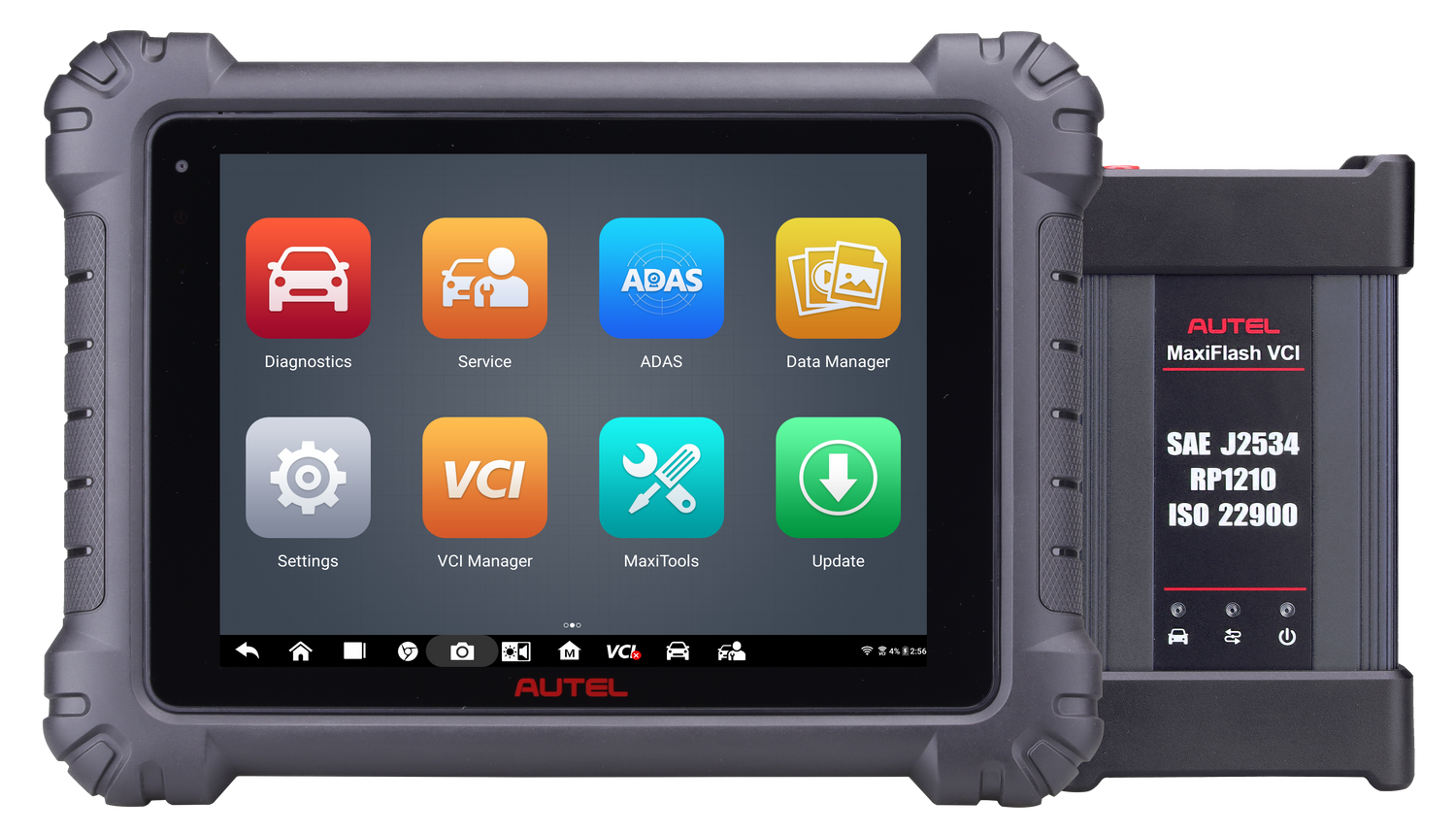

TABLET SPECIFICATIONS(Optional)

Tablet Operating System

Android™ 4.4.2, KitKat

Tablet Processor

Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)

Tablet Memory

2GB RAM & 64GB On-board Memory

Tablet Display

9.7-inch LED capacitive touch screen with 1024×768 resolutionTablet Connectivity

• Wi-Fi (802.11 a/b/g/n/ac)
• USB: 2.0
• BT v.2.1 + EDR
• SD Card (Support up to 32GB)
• HDMI

Tablet Camera

(rear)8.0 Megapixel, AF with Flashlight

Tablet Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Tablet AudioInput/output

• Microphone
• Dual Speakers
• 3-Band 3.5 mm stereo/standard headset jack

Tablet Power and Battery

• 11000 mAh 3.7 V lithium-polymer battery
• Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C

Tablet Input Voltage

12 V (9-24 V)

Tablet Power Consumption

6.5 W

Tablet Operating Temperature

0 to 50°C (32 to 122°F)

Tablet Storage Temperature

-20 to 60°C (-4 to 140°F)

Tablet Dimensions

(WxHxD)300 mm (11.81„) x 220 mm (8.66„) x 50 mm (1.97„)

Tablet Weight

NW: 1.42 kg (3.13 lb.)

GW: 8.655 kg (19.08 lb.)

Tablet Protocols

ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

ADAS products are non-returnable.
