TOPDON Phoenix Elite

Connect to the newest vehicles and technology, The Phoenix Elite meets all the latest requirements for vehicle network communication

The Phoenix Elite comes with an updated VCI compatible with the CANFD protocol, making this a must-have device to work on the most modern cars.

All Data In One View

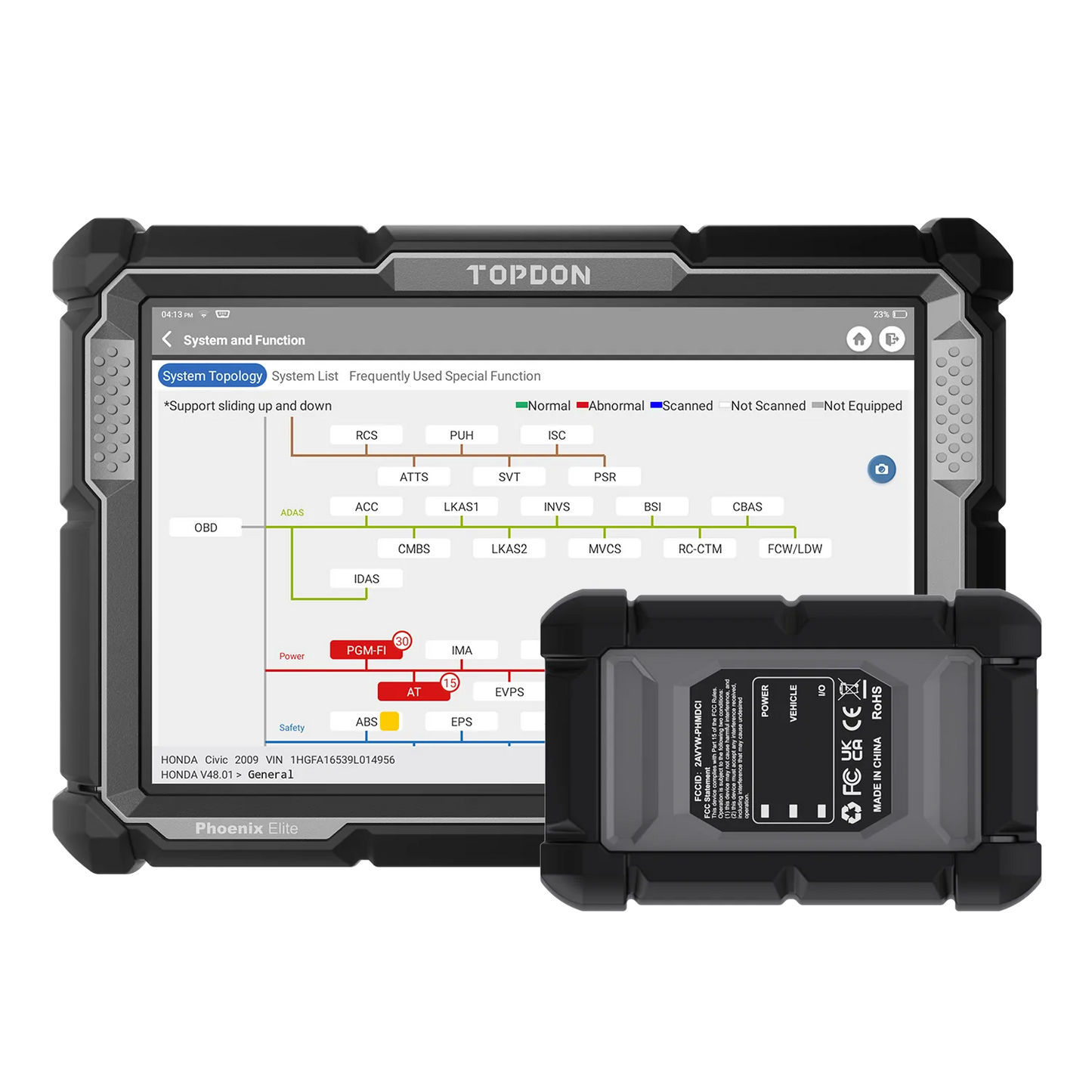

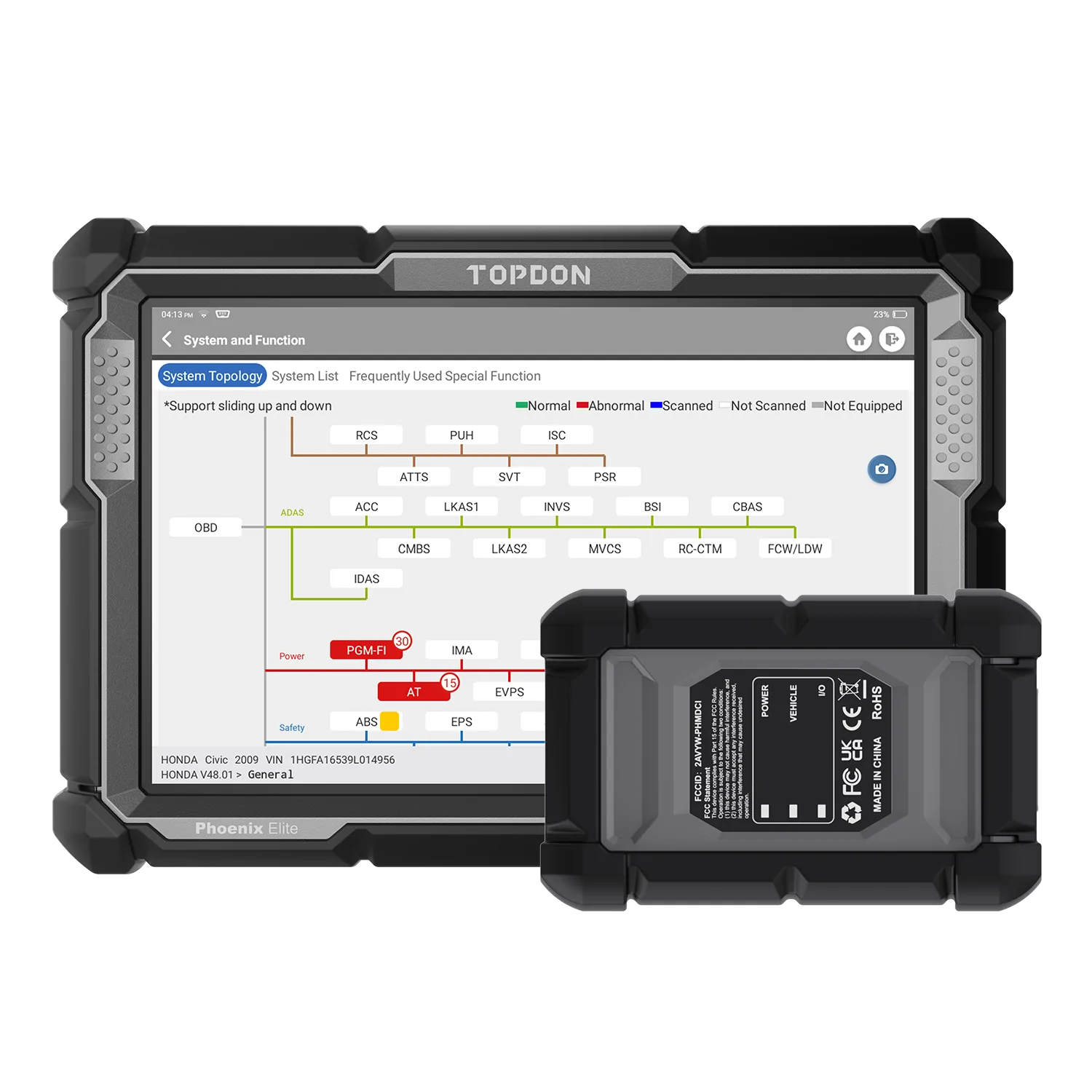

Topology map granting a clear picture of related vehicle systems and status-Clearly defined CAN network layout

Diagnose communication issues in one glance

Color-coded mapping of each module communication status

Active tests, special functions, coding, initialization, and memory resets

Guided functions for VAG vehicles

Step by step guided diagnostics process, based on code, for VW and Audi Group Vehicles

Expand coverage to include ADAS Calibrations.

Not just a diagnostics tool, The Phoenix Elite allows you to expand your abilities.  By upgrading your tablet with ADAS calibration and adding the necessary targets, you can turn your high-performance scan tool into an ADAS system Calibration station.  Creating a whole new revenue stream for your shop.

Pre-scan and post-scan reporting

Show and Prove the before and after reports. The Phoenix Elite Pre-Scan and Post Scan feature allows the technician the ability to record the codes prior to repair. This allows submission to the customer or insurance company for repair approval. Once the repair is complete the codes can be cleared, and a Post Scan report can be ran to show all codes are clear and the vehicle has a clean bill of health.

Vehicle Auto VIN and Autodetect

No longer do you need to select the Year-Make-and Model, The Phoenix Elite can automatically capture the vehicles VIN number and determine all relevant information to auto populate the vehicle. Saving the technician time, and preventing mistakes

PHOENIX ELITE Tablet

Display: LCD 10.1-Inch, 1280 * 800

CPU 4-Core Processor, 2.0 GHz

System: Android 10.0

RAM: 4G, ROM 64G

Battery: 12000 mAh / 3.8V

Operating Voltage: 9~18V

Storage Temperature: -20℃~60℃（-4℉~140℉）

Working Temperature: 0℃~50℃（32℉~122℉）

Dimension: 278*191*48 mm（10.94*7.52*1.89"）

Package size: 468*320*143 mm(18.43*12.60*5.63")

Net Weight: 3.45 lb (1566.5g)

Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Korean, Chinese(traditional), Hungarian, Dutch, Turkish, Polish, Finnish

VCI CONNECTOR

Working Temperature: -10℃ to 50℃（14℉ to 122℉）

Operating Voltage: 9 to 18 V

Working Current: ≦ 150 mA

Dimension: 127 x 82 x 36mm（5 x 3.22 x 1.42”）

New protocol supported: CANFD

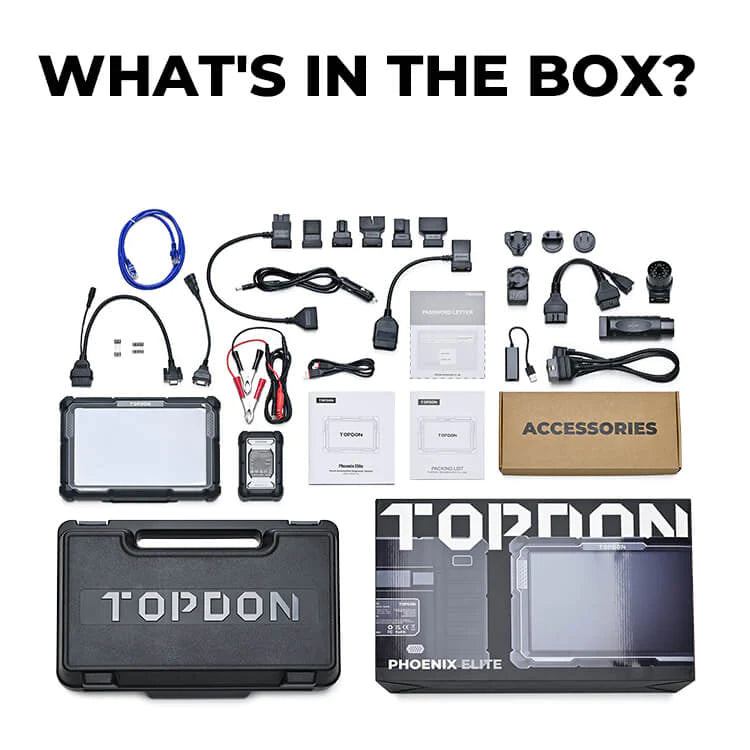

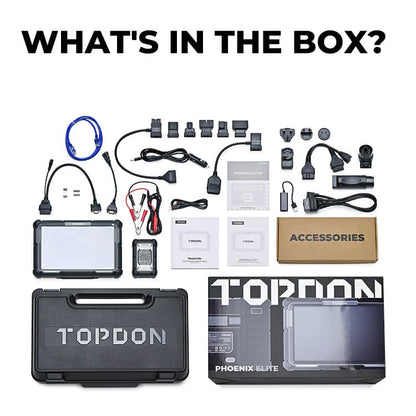

1* Phoenix Elite
1* VCI Dongle
1* OBDI Adapter BOX Transfer Line
1* OBDII Extension Cable
1* Cigarette Lighter Cable
1* Type-C to USB Cable
1* Battery Clamps/Cable Set
1* Power Adaptor
1* User Manual
1* Password Envelope
10* Non-16pin Adaptor Cable Kit (NN-14+16, BZ-38, TA-17, TA-22, G/V-12, B-20, CR-6, HA-3, M/H-12+16, FT-3)
4* Fuse (φ5*20mm)
2* Fuse (φ6*30mm)
1* BMW F-Chassis Programming Cable

User Manual

Two Year Warranty

Two Year of Updates

Phoenix Mobile ADAS Base Package

Free Ground Shipping in the USA

30-Day Money-Back Guarantee*
