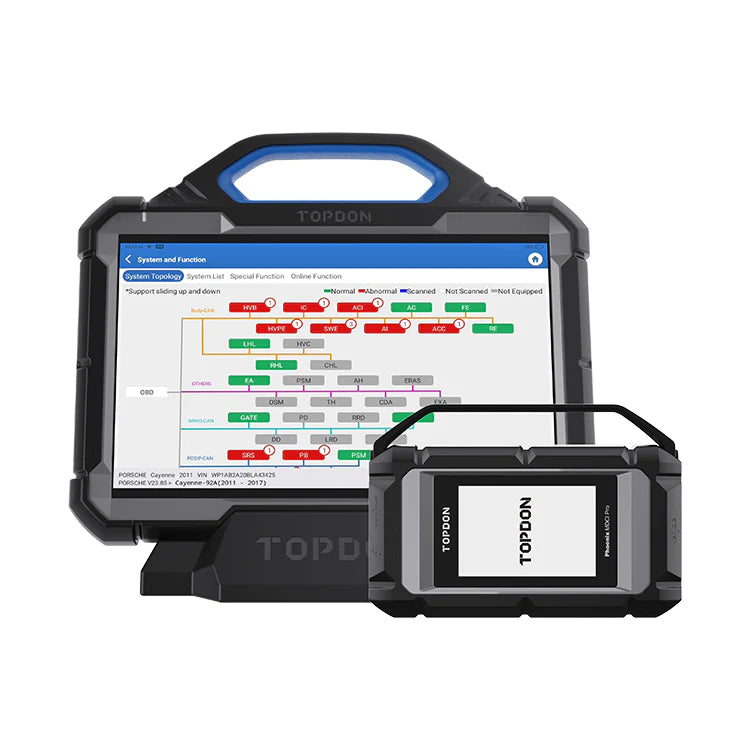

TOPDON PHOENIX MAX

Get More Done

Automotive and Heavy-Duty coverage in one tool, it just makes sense. 2 years of automotive and 1 year of HD updates keep supporting the latest models.
*Heavy-Duty Cables and Software are optional, sold separately.

Phoenix Scope

The included Phoenix Scope allows you to diagnose component and circuit faults with even more precision. With its color-coded channels, you can analyze and compare multiple components with ease.Fix those hard-to-find intermittent problems by evaluating sensors, ignition components, pressure/vacuum related faults, and much more with pinpoint accuracy.

Cloud-Based Programming and Coding

Elevate your game with Cloud-based programming for brands like Benz, BMW, Volkswagen, Audi, Skoda, Seat, Porsche, Land Rover, Jaguar, Hyundai, Nissan, Subaru, Renault, and online coding for Audi, BMW, and Porsche.

The Phoenix MDCI Pro Has You Covered

TOPDON’s Phoenix Max comes with the Phoenix MDCI Pro, a VCI that supports J2534, DoIP, CanFD, D-PDU, and RP1210 protocols. This MDCI Pro’s unparalleled coverage allows you to offer OE-level services to newer and more modern vehicles. With the Phoenix MDCI Pro, you will never be forced to outsource!

Big Display for Big Productivity

Featuring a large 13.3”, 1920 x 1200 display, 8G RAM/256G ROM, and utilizing Android 9, the Phoenix Max will take on whatever you throw at it with fast and smooth operation.

All Day Battery Life

Convenient docking station included so your Phoenix Max is always charged and within reach.

The 18600 mAh, 3.8V battery will power through the day, just like you. 8 hours of run time will ensure you’re never down.

Do More With Special Settings

With the Phoenix Smart, users can unlock special features and settings within vehicles. These advanced capabilities include enabling Video-In-Motion via DVD or USB, disabling the seatbelt light, and more. Applicable to vehicle makes such as Audi, VW, BMW, Porsche, Toyota, and more!

Extended Capability

Compatible with Phoenix ADAS, BTMobile Pros, T-Ninja Box.

Explore More Features On the Phoenix MAX

35 maintenance services for mainstream vehicle models.

Topology map granting a clear picture of relational vehicle systems and status.

Full-system diagnostic (Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, Gateway, Steering, Radio, Air Conditioning) for over 200 vehicle models.

5 Full-system diagnostic basic functions: access ECU info, read DTCs, clear DTCs, read data stream, active test.

AutoVIN for automatic vehicle identification.

Guide Function for VAG.

The FCA Secure Gateway Module(SGW) unlocks the FCA vehicle, in order to perform functions such as clearing DTCs, bi-directional testing and calibration.

Data stream recording for users to play back diagnostic activities.

PHOENIX MAX SPECS

Display: LCD 13.3 inches, 1920 x 1200 pixels

CPU: 8-Core Processor, 2.0 GHz

OS: Android 9.0

RAM: 8G

ROM: 256G

Battery: 18600 mAh / 3.8V

Operating Voltage: 9~18V

Storage Temperature: -20℃~60℃（-4℉~140℉）

Working Temperature: 0℃~50℃（32℉~122℉）

Product Dimensions: 364 x 285 x 82mm (14.30 x 11.20 x 3.20 inches)

Package Dimensions: 673 x 474 x 201mm (26.50 x 18.66 x 7.91 inches)

Net Weight: 3.18kg(7.0 lb)

Multilingual Support-21 languages: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish

PHOENIX MDCI PRO SPECS

CPU: Cortex-A7 + Cortex-M7, Dual Processor

Operating System: Linux

RAM: 256M

ROM: 8G

Display: TFT, 3.97 inches, 320 x 480 pixels

Wi-Fi: 2.4GHz/5GHz, Dual Band

Working Temperature: 0℃~50℃（32℉~122℉）

Operating Voltage: DC 9~36 V

Dimensions: 196 x 135 x 42.8 mm（7.72 x 5.31 x 1.69'')

New Protocols Supported: J2534, CAN FD, DOIP, D-PDU, RP1210h

Phoenix Max

Base

Phoenix MDCI PRO

Phoenix Scope

MDCI PRO CAB Male to Diagnostic Cable

Clipper Cable ( LCDSS )

Fuse ( AC250V/5A, φ5x20mm ) * 4

MDCI PRO CAB Type A to B Cable

Cigarette Lighter Cable

Fuse ( AC250V/5A, φ6x30mm ) * 2

BZ-38 ( BENZ )

TA-17 ( TOYOTA )

B-20 ( BMW )

HA-3 ( HONDA )

OBD I Adaptor

Charging Cable

TA-22 ( TOYOTA )

G/V-12 ( GM/VAG )

CR-6 ( CHRYSLER )

NN-14+16 ( NISSAN )

M/H-12+16 (MITUBISHI/HYUNDAI)

Adaptor

AC Cable (US）

Mini-HDMI to HDMI

3-in-1 Charger (Matched with U.S., U.K. and Europrean plugs)

FT-3 (FIAT）

 AC Cable (EU)

AC Cable (UK)

Type A USB to Type C

Ethernet Cable
